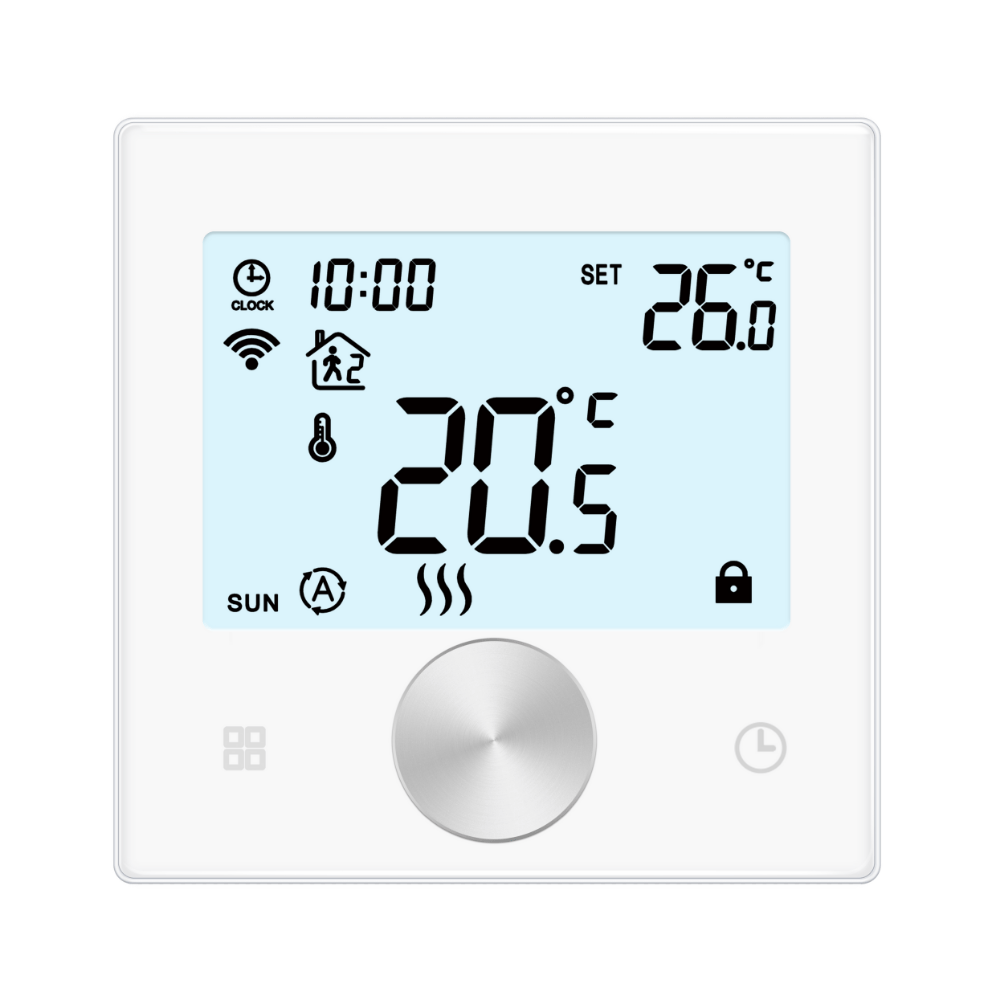

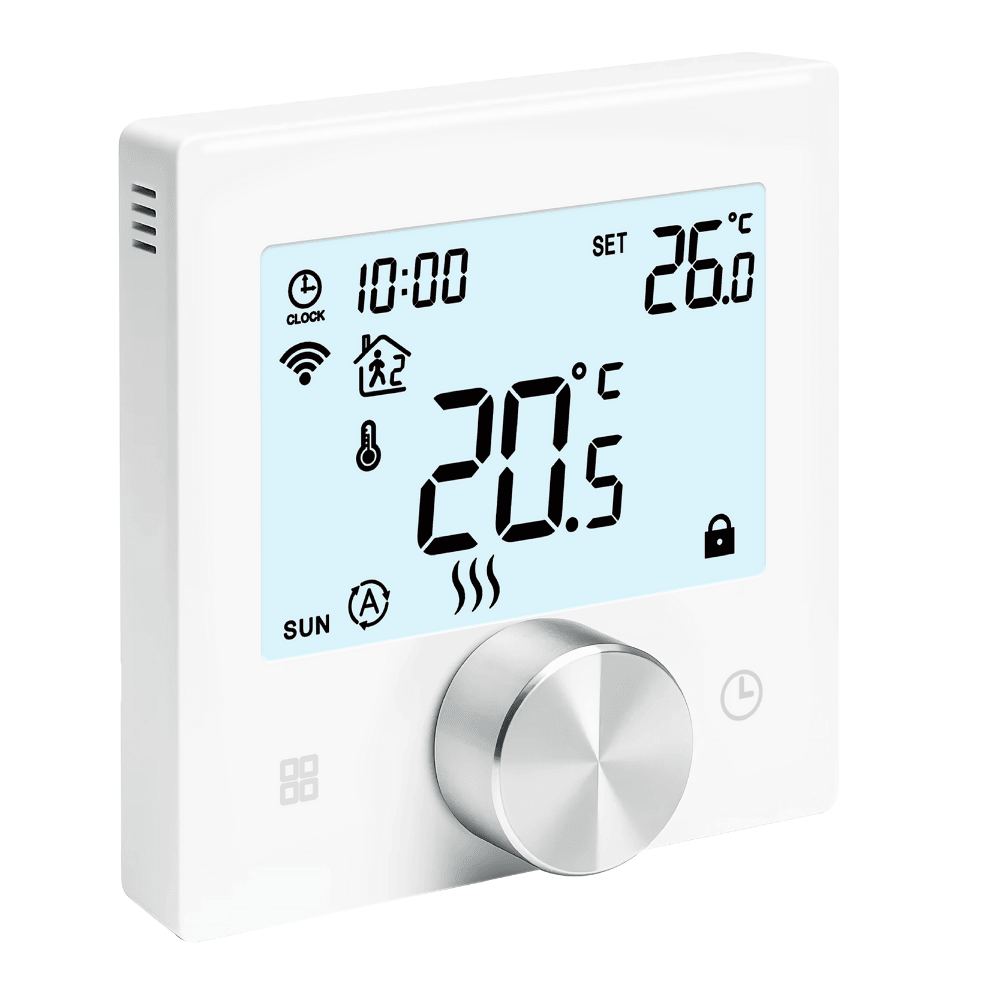

VT02H Knob WiFi Thermostat for Water Floor Heating System

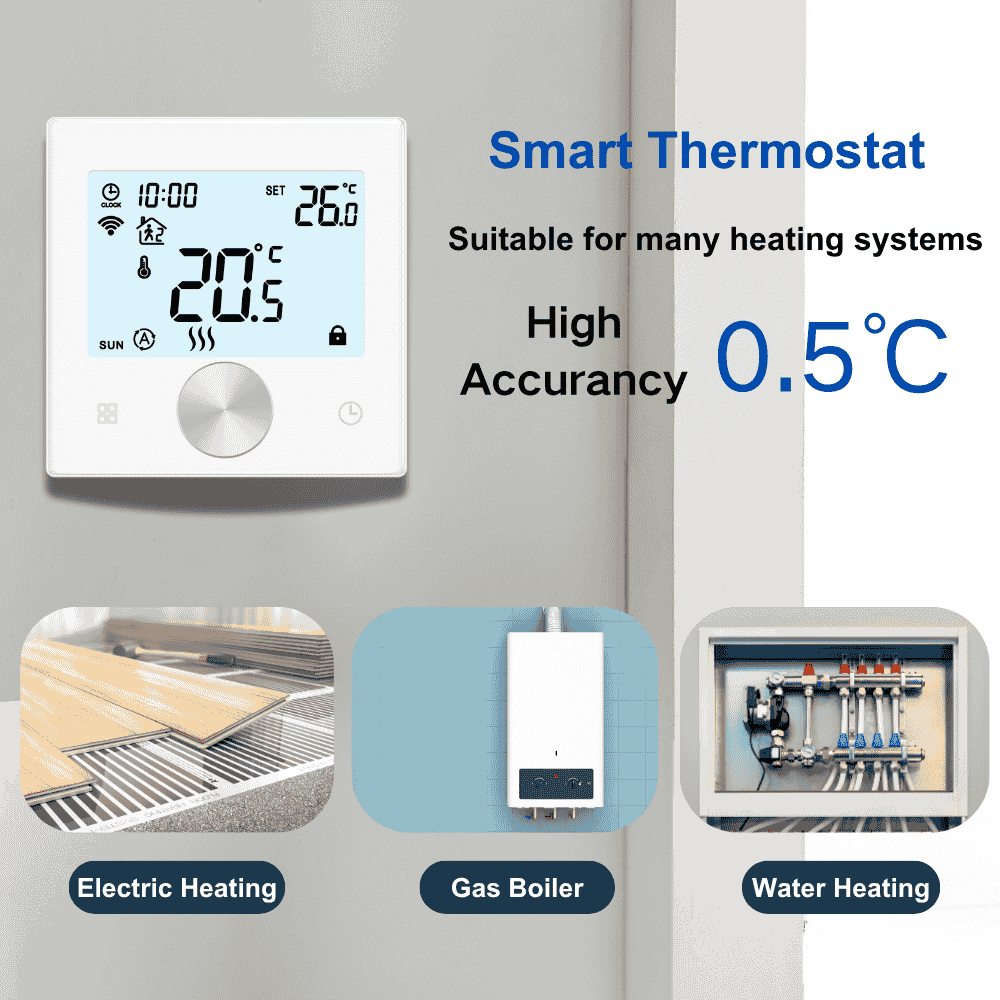

This underfloor heating thermostat is designed to provide precise temperature control for underfloor heating systems, electric radiators, heating cables, hydronic systems, etc. With accurate sensors and intelligent algorithms, it ensures stable and comfortable warmth while optimizing energy use.

Model No.: VT02H-WiFi
Application: Underfloor heating thermostat
Programmability: Weekly programmable

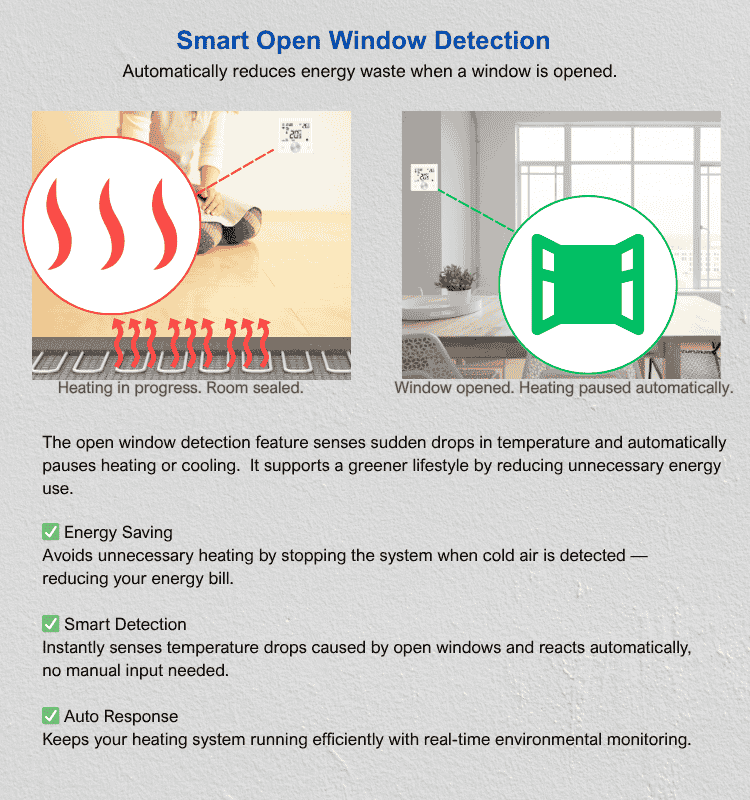

Mode: Heating/Cooling/Ventilation Mode, Holiday Mode, Open Windoe Detection

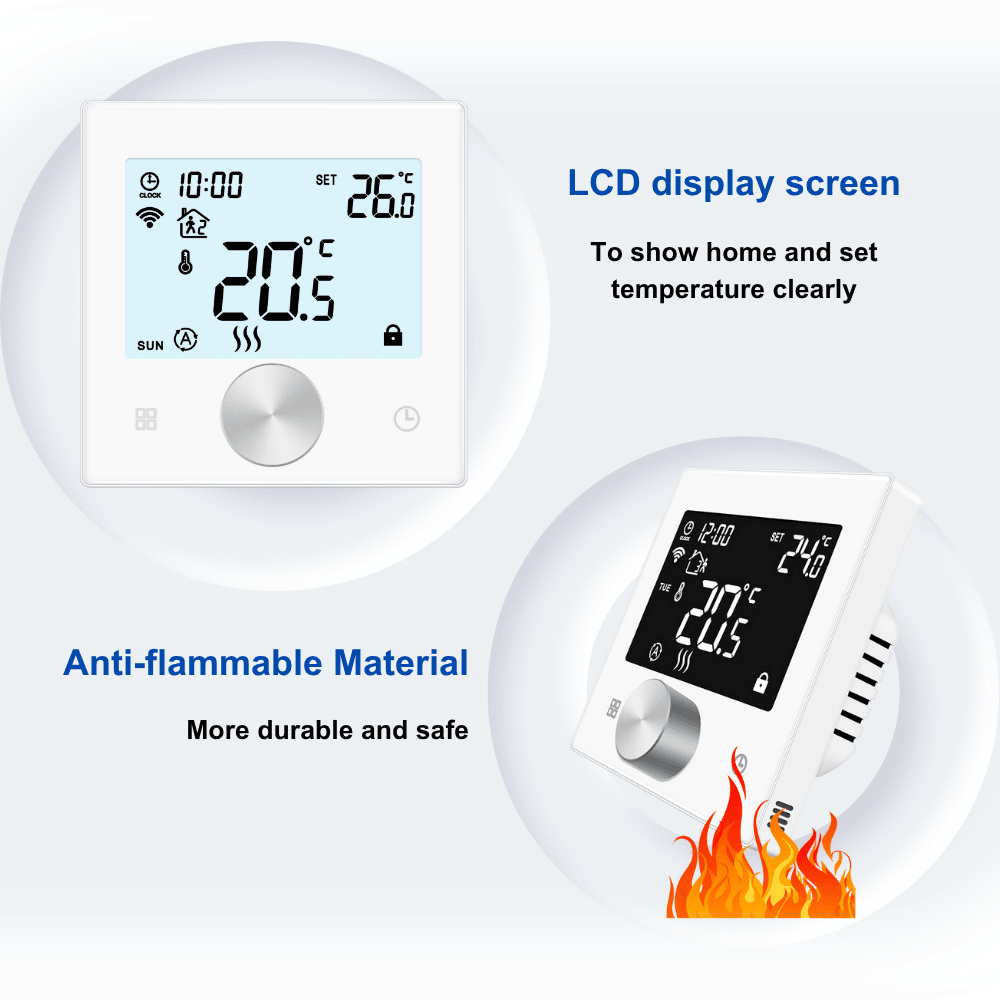

Material: ABS+PC
Packing : Neutral packaging, support customization
Features: Child lock, Temperature calibration, High and Low temperature protection

TECHNICAL PARAMETERS

Application Floor Heating Thermostat
Power Supply

AC100-240V, 50/60Hz; AC/DC 24V, 50/60Hz

Load Current 16A(electric heating); 3A(water heating/ gas boiler)
Display Accuracy ±0.5℃
Sensor NTC (10k)
Ambient Temperature 0~99℃
Set Temperature Range 5~35℃
Control Touch button control
Installation Wall mounted
Size 86*86*12mm
Color Black, White
Customization Customized logo and packaging
Customzied software
Customized hardware

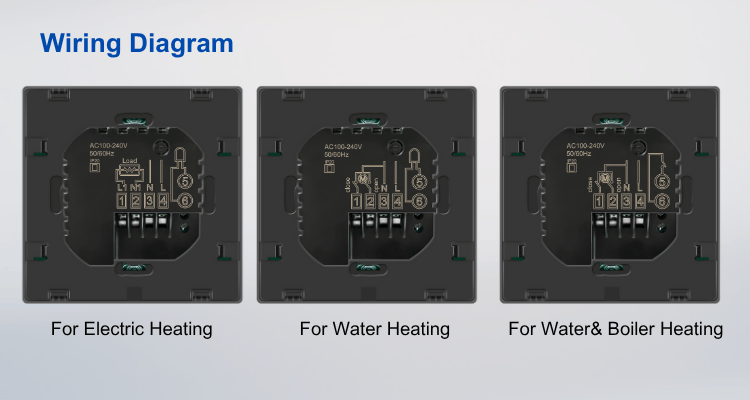

WIRING AND INSTALLATION
