VT01H 3A Water Underfloor Heating Thermostat Programmable Room WiFi Thermostat

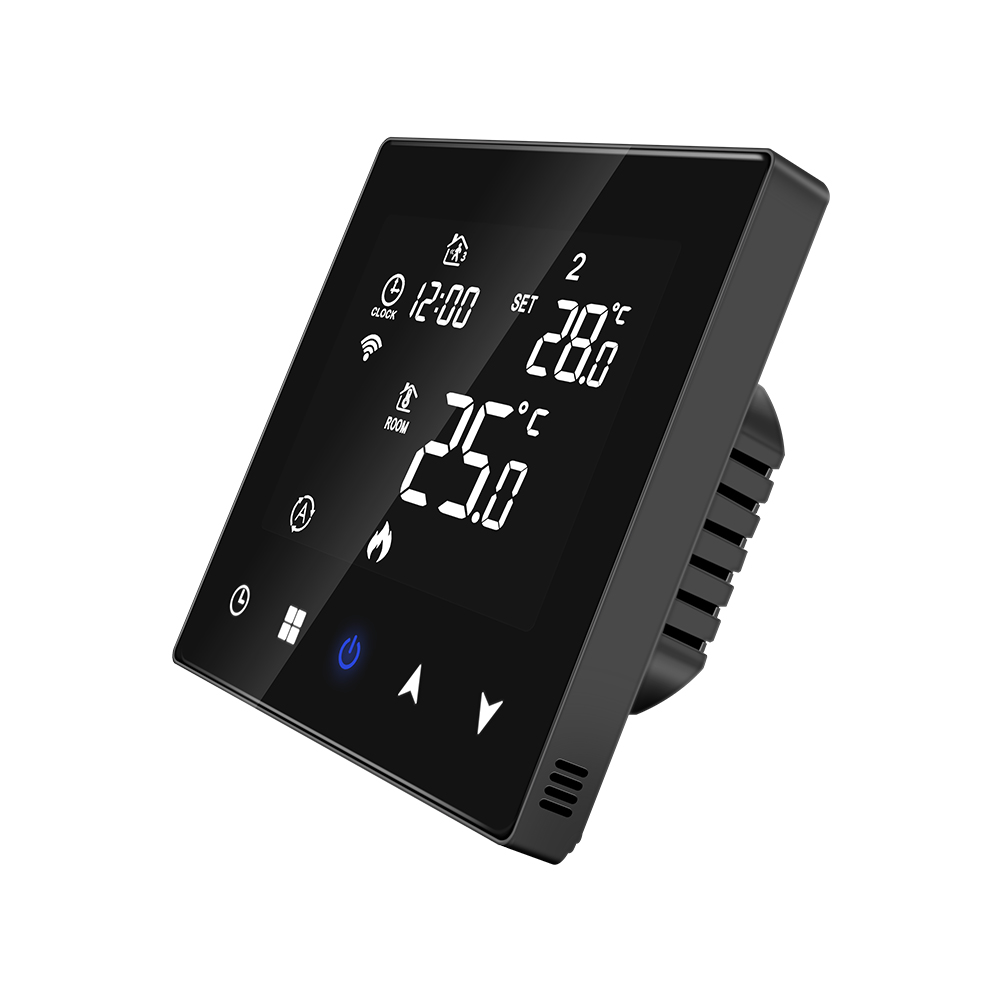

VT01H touch screen wifi thermostat has clear digital LCD display panel with white backlight shows set temperature and room temperature, convenient for you to adjust. It’s mainly used in smart home water floor heating temperature control system for home, office, apartment, hotel, etc.
Model No.: VT01H-WiFi
Application: Water underfloor heating system/ Boiler
Programmability: 5+2 days programmable
Mode: Heating mode, holiday mode
Material: ABS+PC
Packing : Neutral packaging, support customization
Features: Child lock, Low temperature protection, Temperature calibration
New arrivals

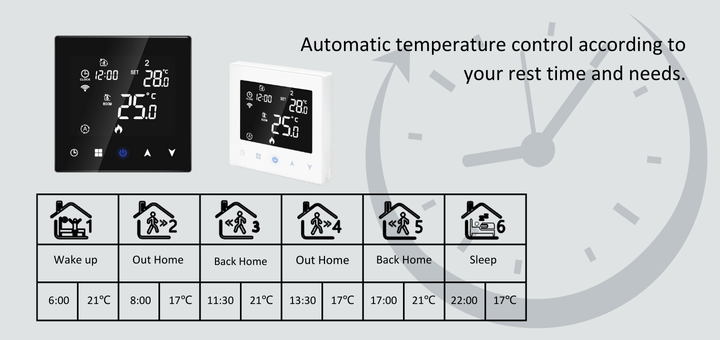

The new VT01H touch screen wifi thermostat has clear digital LCD display panel with white backlight shows set temperature and room temperature, convenient for you to adjust. It has a weekly programmable mode, you can set up 5+1+1 weekly plan, and set time periods and temperature according to your own schedule. Five sensitive touch buttons or classic buttons make it easy to adjust a variety of functions.
The V Series intelligent wifi thermostats are mainly used in smart home heating and cooling temperature control system for home, office, sauna house, apartment, hotel, etc. It can be voice control, work with Alexa, Google Assistant; and remotely controlled by smart App like Tuya/ Smart Life. WiFi connection enables convenient temperature control even when you are out of the house, giving you a comfortable smart living experience.
TECHNICAL PARAMETERS
| Application | Water floor heating system/ boiler |
| Power Supply | AC100-240V, 50/60Hz |
| Receiver Max. Load | 3A |
| Display Accuracy | ±0.5℃ |
| Sensor | NTC (10k) |
| Ambient Temperature | 0~70℃ |
| Set Temperature Range | 5~35℃ |
| Control | Touch button control |
| Installation | Wall mounted |

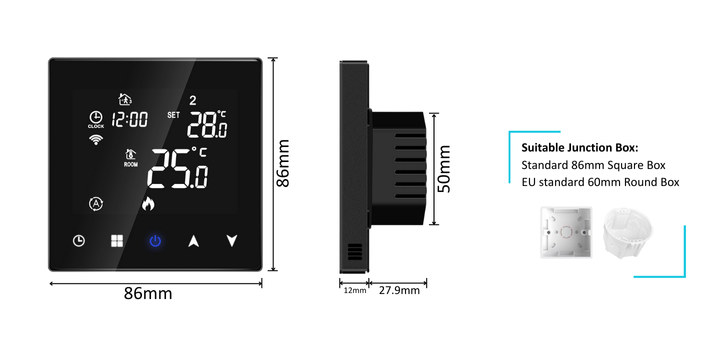

| Size | 86*86*12mm |
| Color | Black, White |
| Customization | Customized logo and packaging |
| Customzied software | |
| Customized hardware |
WIRING AND INSTALLATION
