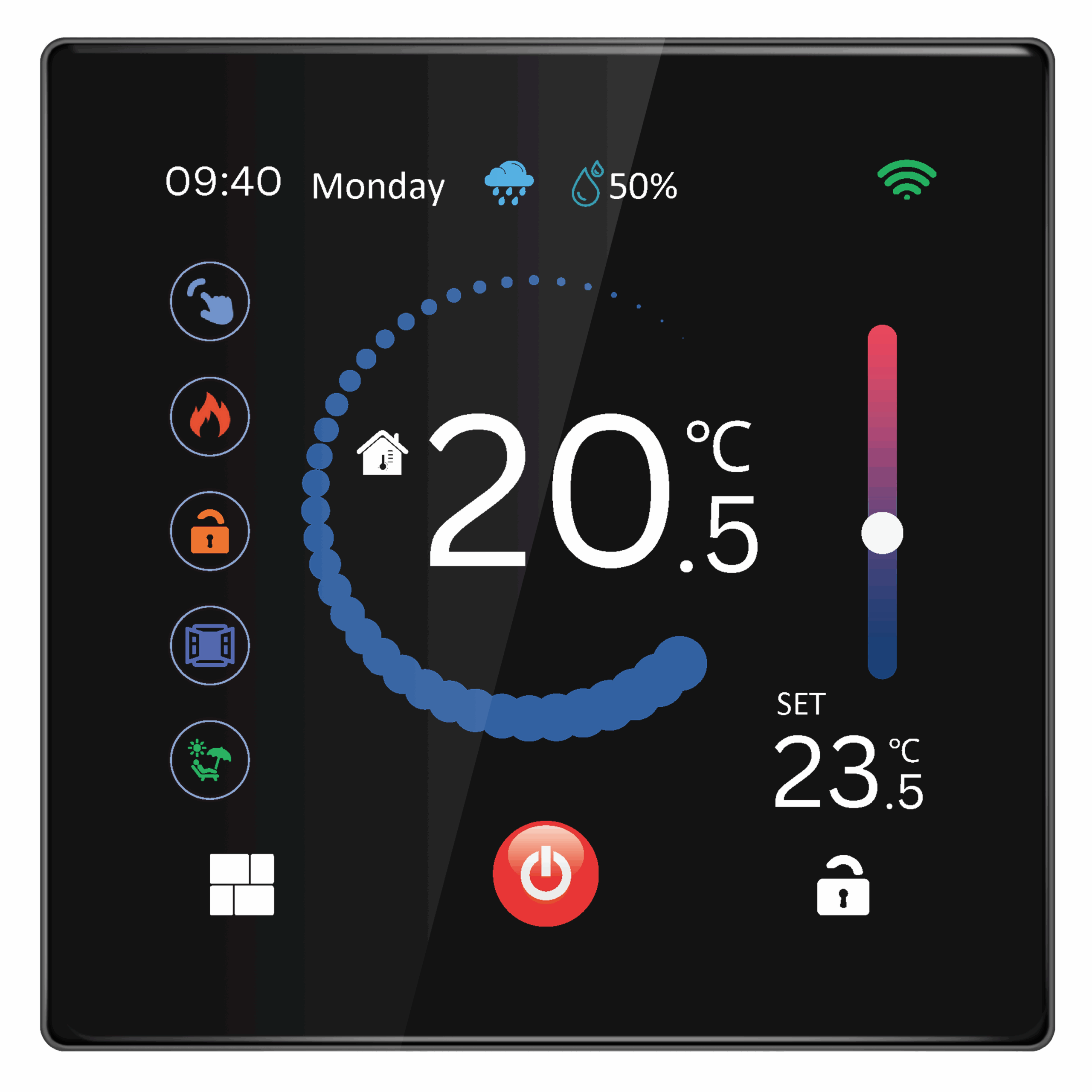

T1H-WIFI Full-touch TFT Color Screen Heating Thermostat
This T1H-WIFI Colorful Display Touchscreen Digital Thermostat, a smart WiFi programmable temperature controller designed to bring precise, effortless climate control to homes, hotels, offices and commercial spaces. Featuring a vibrant full-color touchscreen, intelligent weekly programming and optional APP/voice control.
Technical Datat:
- Power Supply: AC100-240V, 50/60Hz
- Load Current: 16A (Electric Heating); 3A (Water Heating/Gas Boiler)
- Accuracy: ±0.5℃
- Temperature Sensor: NTC, 10k
- Set Temperature Range: 5℃- 35℃
- Display Temperature Range: 0℃- 80℃
- Self-consuming Power: <2W
- Size: 86*86*12mm
New arrivals

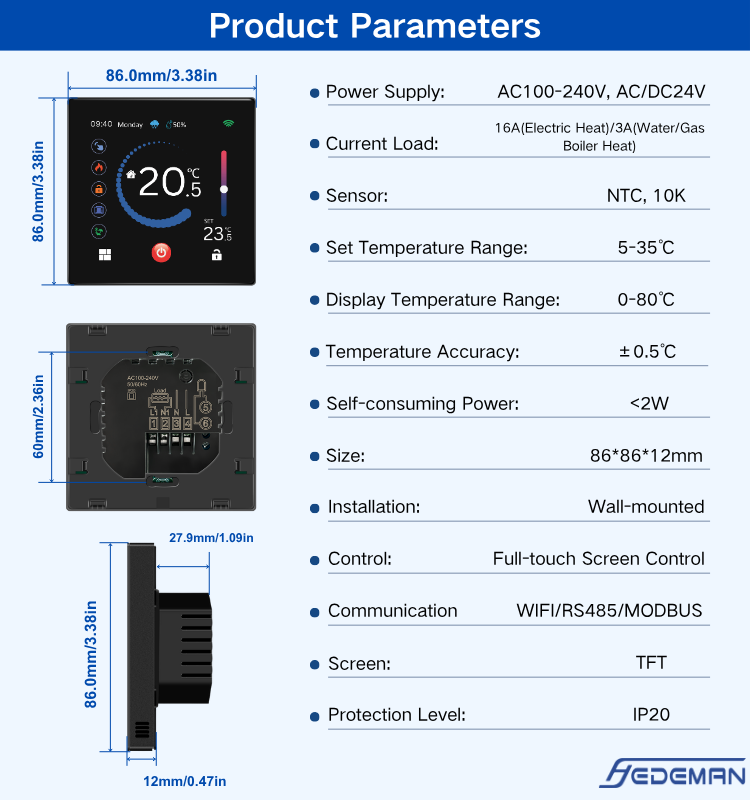

TECHNICAL PARAMETERS
Technical Datat:
- Power Supply: AC100-240V, 50/60Hz
- Load Current: 16A (Electric Heating); 3A (Water Heating/Gas Boiler)
- Accuracy: ±0.5℃
- Temperature Sensor: NTC, 10k
- Set Temperature Range: 5℃- 35℃
- Display Temperature Range: 0℃- 80℃
- Self-consuming Power: <2W
- Size: 86*86*12mm

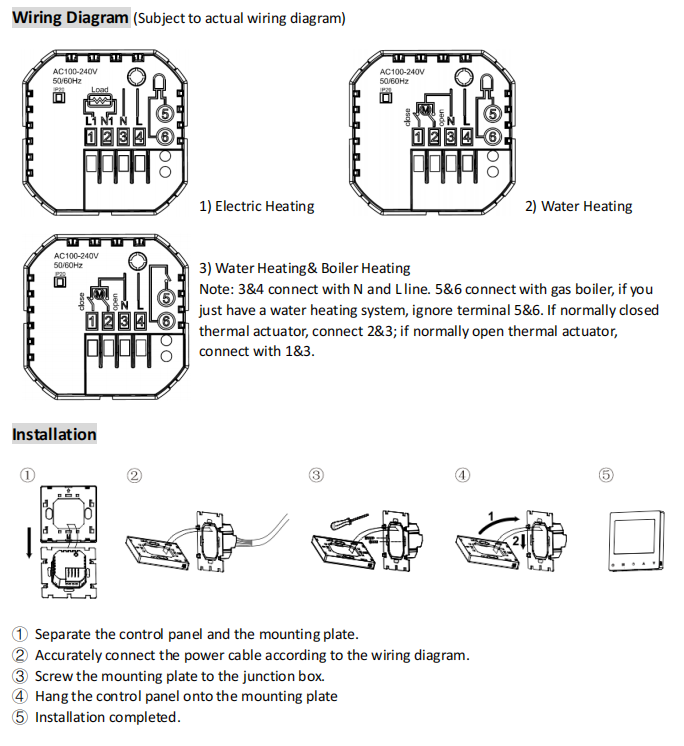

DIAGRAM AND INSTALLATION
