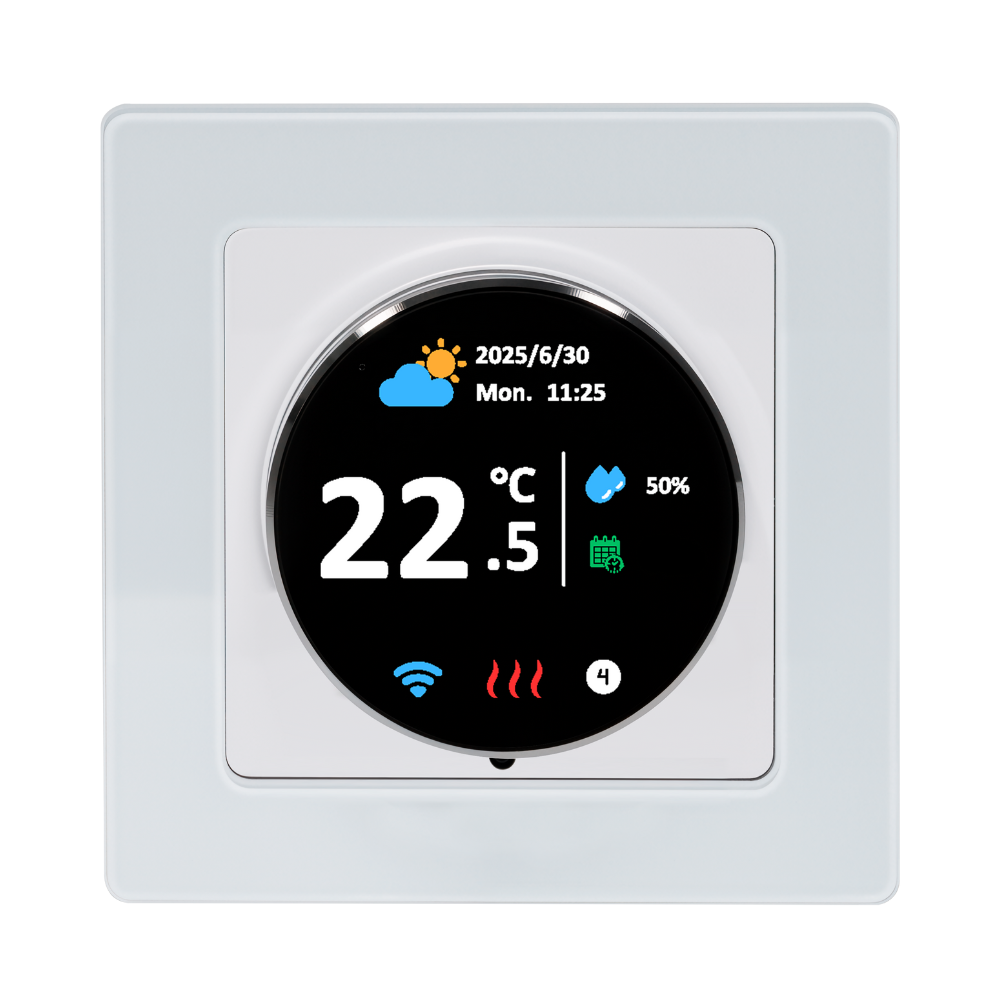

V05H Colorful Screen Knob Control Wifi Thermostat for Heating Temperature Control

This V05H-WIFI Thermostat is suitable for electric/water/gas boiler heating temperature control system. Worked with Tuya/Smart Life APP.

Technical Data

Power Supply: AC100-240V, 50/60Hz

Load Current: 16A (Electric Heating);3A (Water Heating/Gas Boiler)

Accuracy: ±1℃

Temperature Sensor: NTC, 10k

Set Temperature Range: 5℃ – 35℃

Display Temperature Range: 1℃ – 70℃

Self-consuming Power: <2W

ENQUIRY!
Categories: ,

TECHNICAL PARAMETERS

Technical Data

  1. Power Supply: AC100-240V, 50/60Hz
  2. Load Current: 16A (Electric Heating);3A (Water Heating/Gas Boiler)
  1. Accuracy: ±1℃
  2. Temperature Sensor: NTC, 10k
  3. Set Temperature Range: 5℃ - 35℃
  4. Display Temperature Range: 1℃ - 70℃
  5. Self-consuming Power: <2W

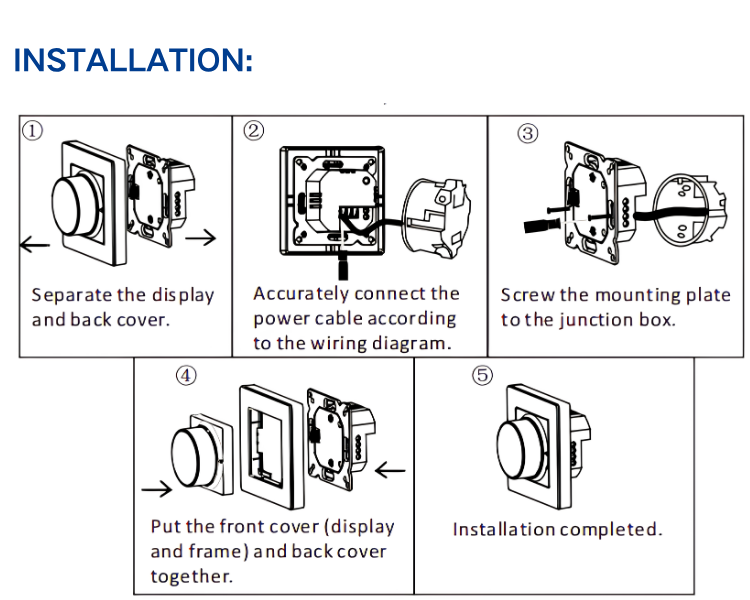

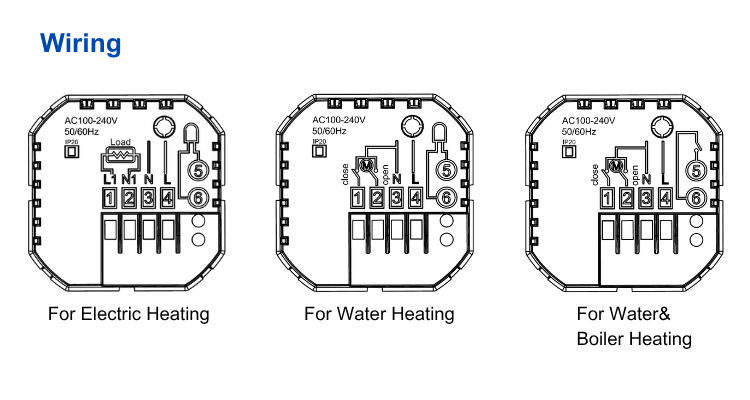

DIAGRAM AND INSTALLATION
