QCH-01 Plug-in Socket Thermostat
Special design socket wifi connection heating thermostat QCH-01 provides plug selection that comply with the regulations of many countries with external sensor for optional.
Model No.: QCH-01-WiFi
Application: Heating and Cooling temperature control system
Programmability: 5+1+1 days programmable
Mode: Heating Mode, Holiday Mode
Material: ABS+PC
Packing : Neutral packaging, support customization
Features: Child lock, Temperature calibration, Low temperature protection,Weekly programmable
Product categories
New arrivals
-
T1H-WIFI Full-touch TFT Color Screen Heating Thermostat
-
BG12-WIFI Large LCD Screen Battery/USB Power Supply Gas Boiler Wifi Thermostat
-
BG10-WIFI Gas Boiler Heating Temperature Control Thermostat
-
V06H Detachable Touch Buttons Programmable WIFI Thermostat
-
V05H Colorful Screen Knob Control Wifi Thermostat for Heating Temperature Control

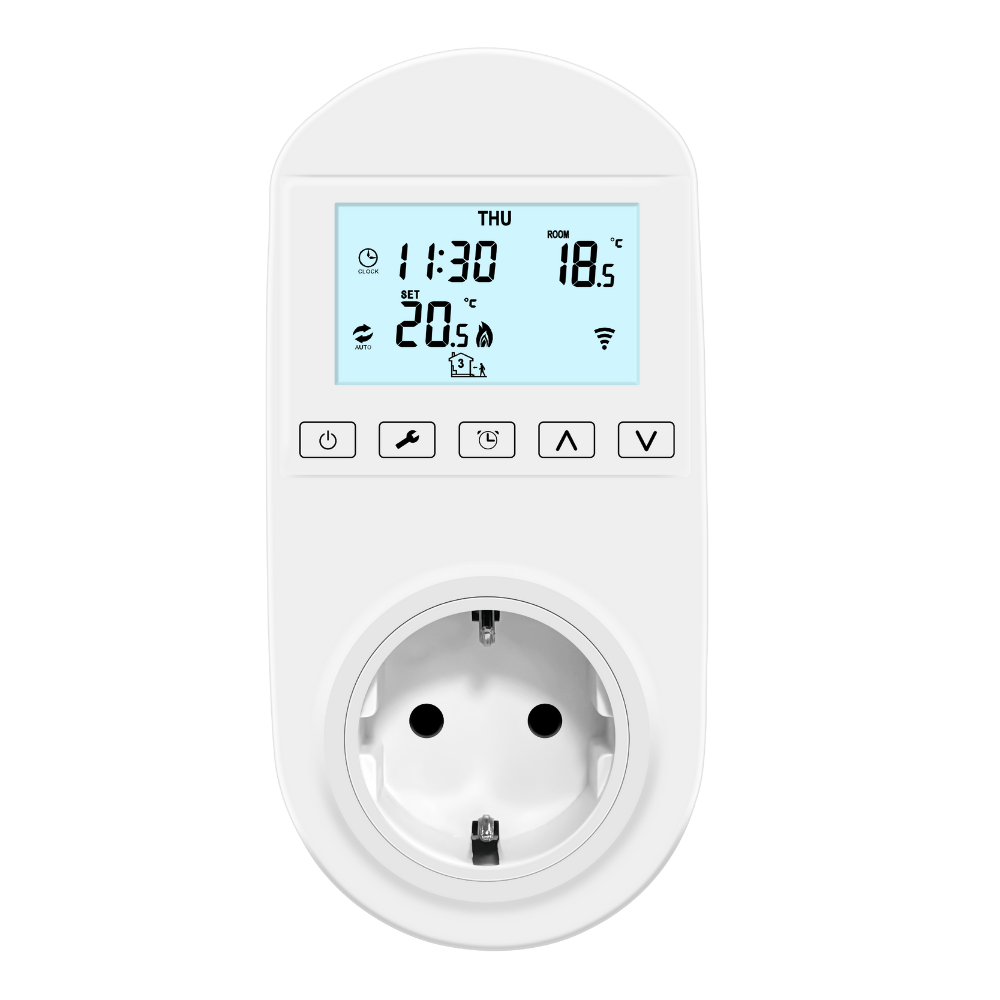

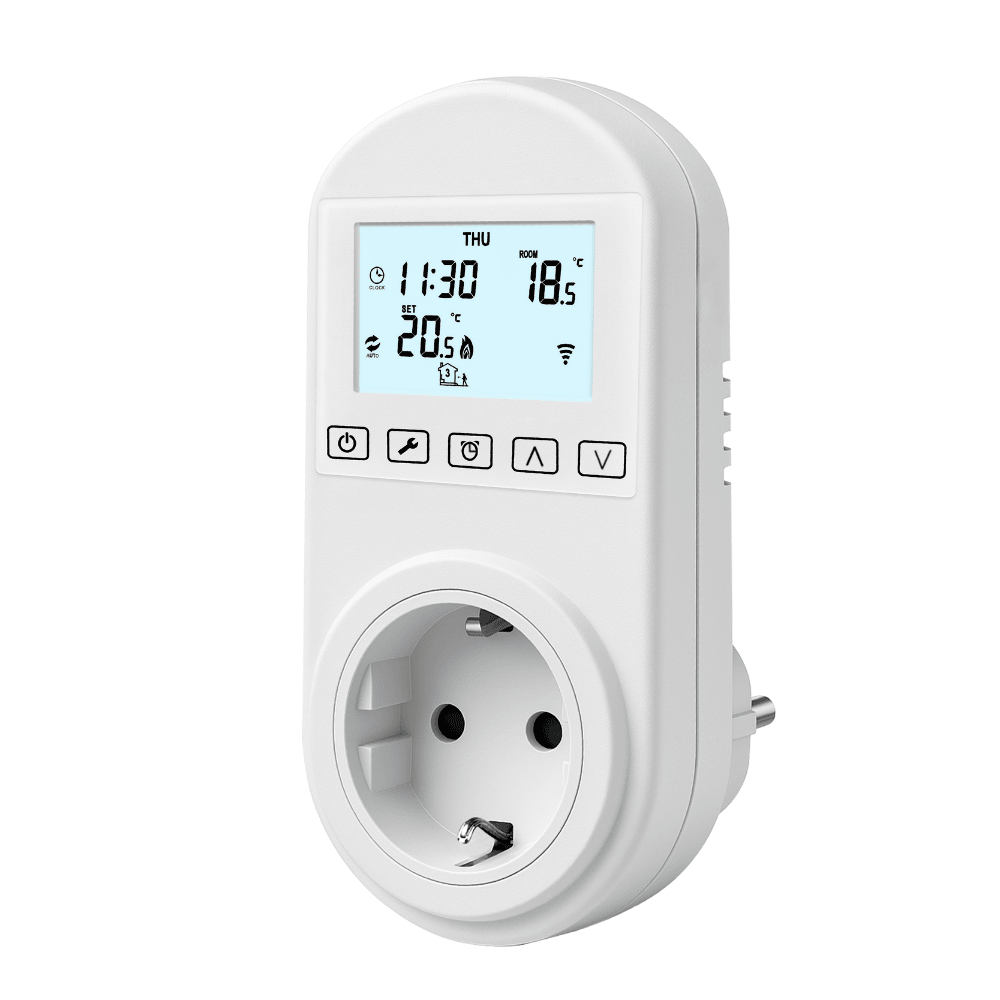

The QCH-01 heating plug-in socket thermostat is designed with a straightforward and easy-to-read display that shows both the current room temperature and the set temperature. It features five classic buttons to cater to various users. Additionally, it includes a key lock mechanism to prevent accidental misoperation, ensuring that the settings remain secure and stable. With weekly programmable schdule lets you set and enjoy your own temperature lifestyle.

Plug-in thermostat QCH-01 boasts an impressive accuracy of ±0.5℃, guaranteeing a cozy and energy-efficient living environment.Anti-flammable PC+ABS matrial makes it has long using life and ensure using safety.

With wifi connection, this socket thermostat can be controlled wirelessly via mobile phones at any time and from any location using the Tuya/Smart Life app.

The QCH-01 smart WiFi thermostat is compatible with voice control through Amazon Alexa and Google Assistant, enabling you to effortlessly manage own home temperature and enjoy a more intelligent and convenient lifestyle.


TECHNICAL PARAMETERS
| Application | Heating and Cooling Systems |
| Power Supply | AC110-240V, 50/60Hz |
| Receiver Max. Load | 16A |
| Display Accuracy | ±0.5℃ |
| Sensor | NTC (10k) |
| Ambient Temperature | 0~70℃ |
| Set Temperature Range | 5~35℃ |
| Control | Touch/Button control |
| Installation | Plug |
| Size | 135mm*67mm*35mm |
| Color | Black, White |
| Customization | Customized logo and packaging |
| Customzied software | |
| Customized hardware |
WIRING AND INSTALLATION
