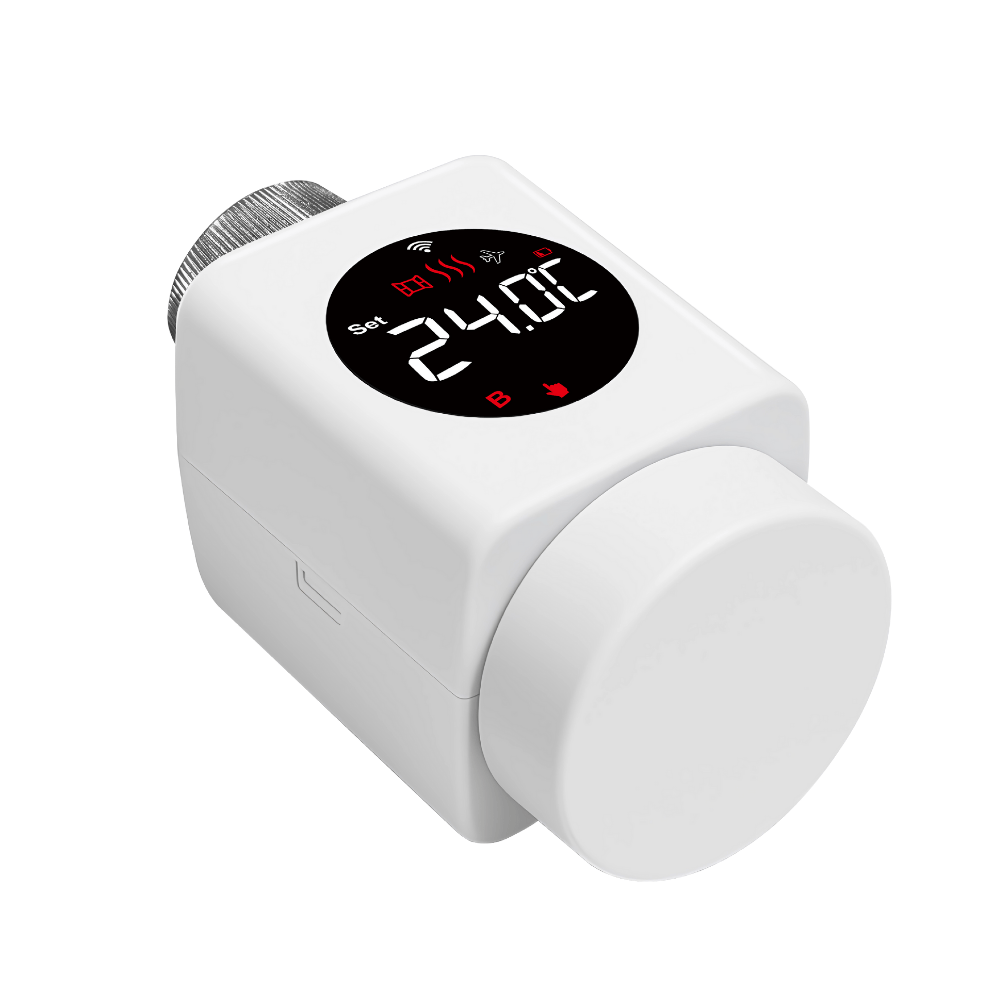

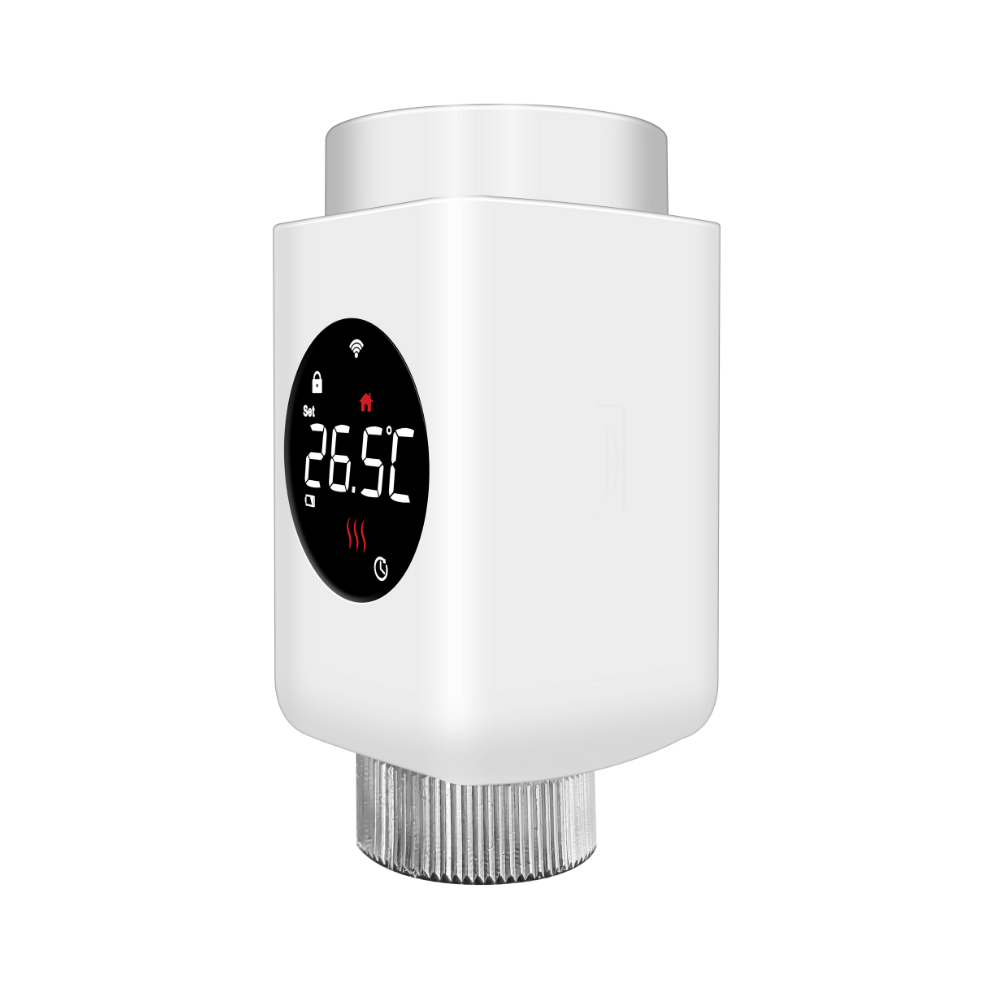

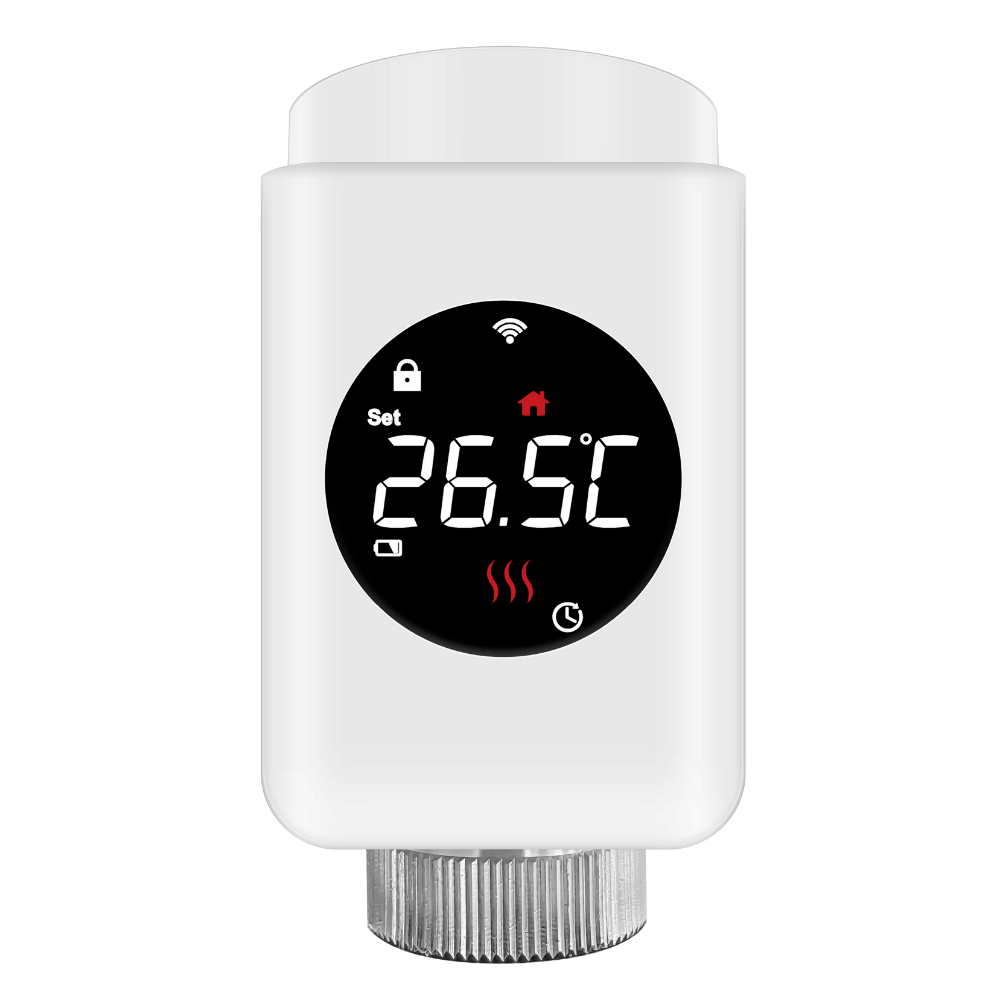

TRV01-ZB Wireless WIFI Zigbee Thermostat
Smart heating wifi thermostat TRV01-ZB is ideal for various environments such as homes, offices, apartments, hotels and etc. More convenient with Zigbee smart gateway connection and Tuya/Smart Life APP control.
Model No.: TRV01-ZB-WiFi
Application: Heating and Cooling Systems
Programmability: 5+2 days programmable
Mode: ON/OFF/Program Mode, Holiday Mode,
Material: ABS+PC
Packing : Color Box, support customization

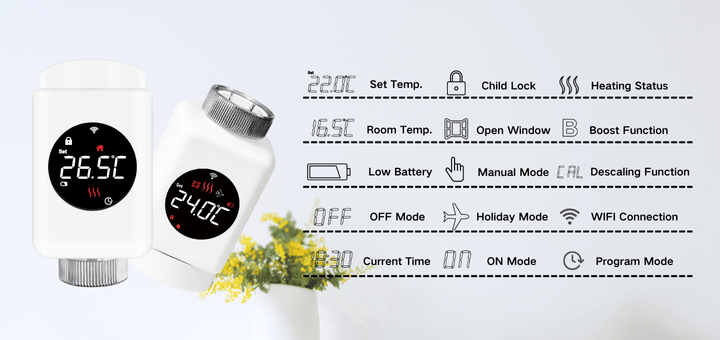

Features: Child lock, Temperature calibration, Open detection function, Descaling function, Low temperature protection, Boost function
Product categories
New arrivals
-
T1H-WIFI Full-touch TFT Color Screen Heating Thermostat
-
BG12-WIFI Large LCD Screen Battery/USB Power Supply Gas Boiler Wifi Thermostat
-
BG10-WIFI Gas Boiler Heating Temperature Control Thermostat
-
V06H Detachable Touch Buttons Programmable WIFI Thermostat
-
V05H Colorful Screen Knob Control Wifi Thermostat for Heating Temperature Control

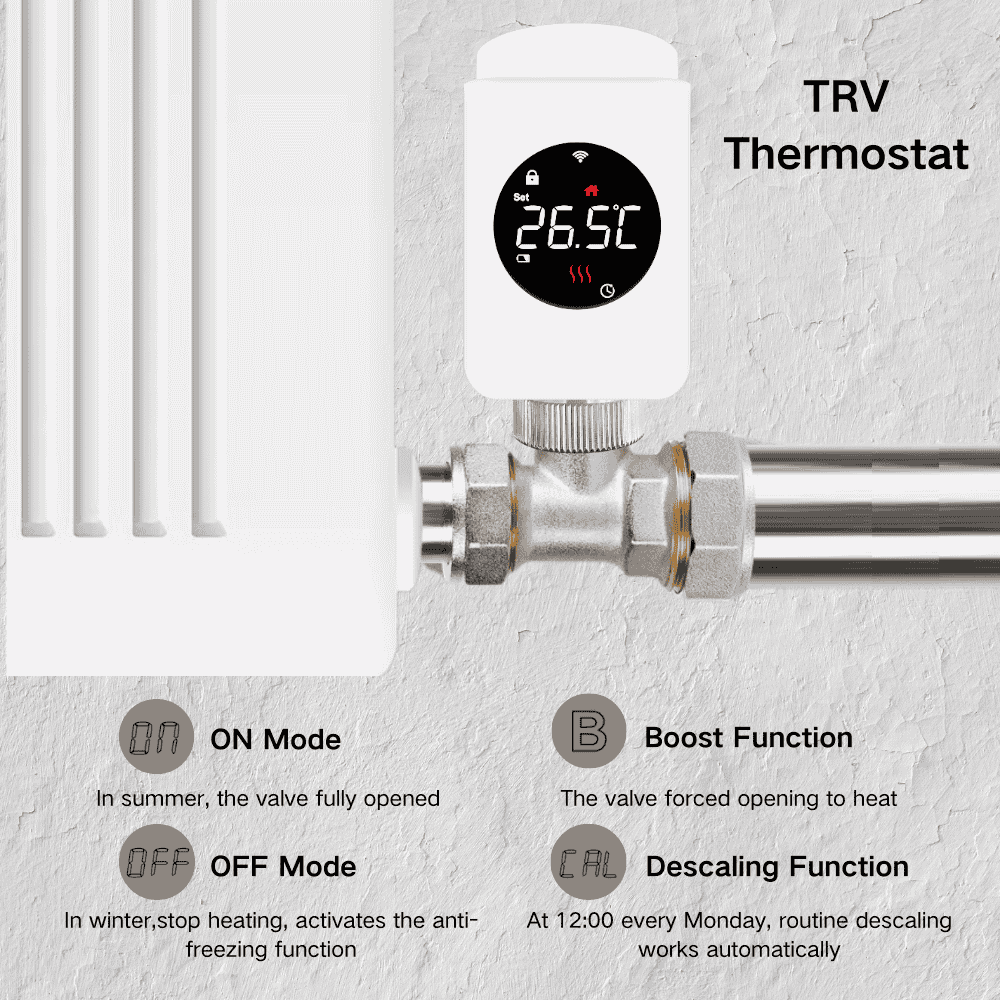

The TRV01-ZB WIFI home thermostat offers enhanced wireless convenience with its battery-powered operation and wifi connection. Additionally, its automatic cleaning feature, which activates every Monday, ensures that the valve pipes remain clean and free from debris. This thermostat supports multiple functions, such as ON/OFF mode, frost protection, and a boost function to safeguard the valve. Furthermore, the device includes a key lock mechanism that effectively prevents accidental adjustments and low battery warning to inform you of the thermostat using status.


This TRV01-ZB heating thermostat with open window detection function to timely alert of abnormal environmental conditions to adjust own working state in order to save energy.


By connecting to WiFi and the Zigbee smart gateway, you can use mobiles phone with Tuya/Smart Life to monitor and adjust working ststus of this wireless TRV01-ZB thermostat.

The TRV01-ZB smart WiFi thermostat integrates with popular virtual assistants like Amazon Alexa and Google Assistant, allowing you to effortlessly adjust home’s temperature using voice commands. This hands-free control enhances convenience and efficiency, providing a smarter and more comfortable living experience.

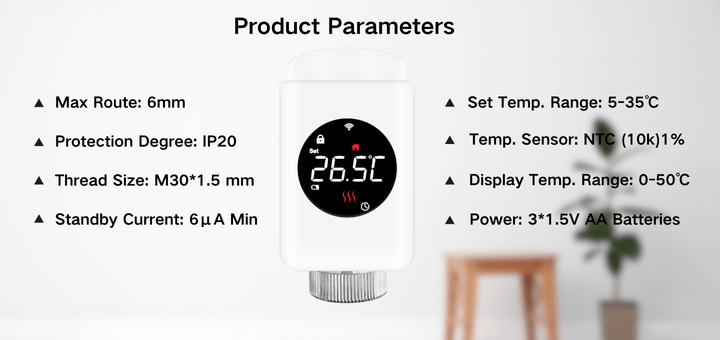

TECHNICAL PARAMETERS
| Application | Radiator |
| Power Supply | 3*1.5V AA Batteries |
| Standby Current | 6μA Min |
| Display Accuracy | ±0.5℃ |
| Sensor | NTC (10k) |
| Ambient Temperature | 0~50℃ |
| Set Temperature Range | 5~35℃ |
| Control | APP control |
| Max Route | 6mm |
| Thread Size | M30*1.5 mm |
| Color | White |
| Customization | Customized logo and packaging |
| Customzied software | |
| Customized hardware |

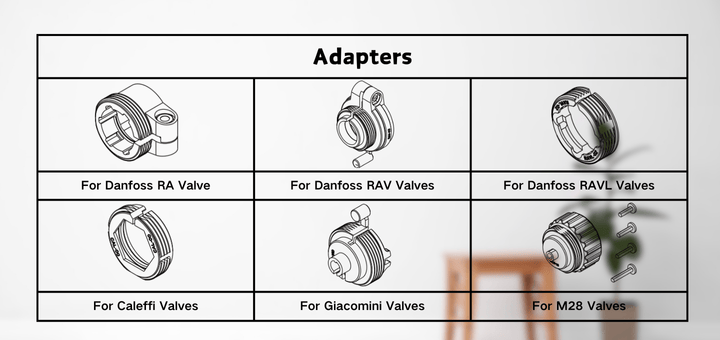

WIRING AND INSTALLATION
